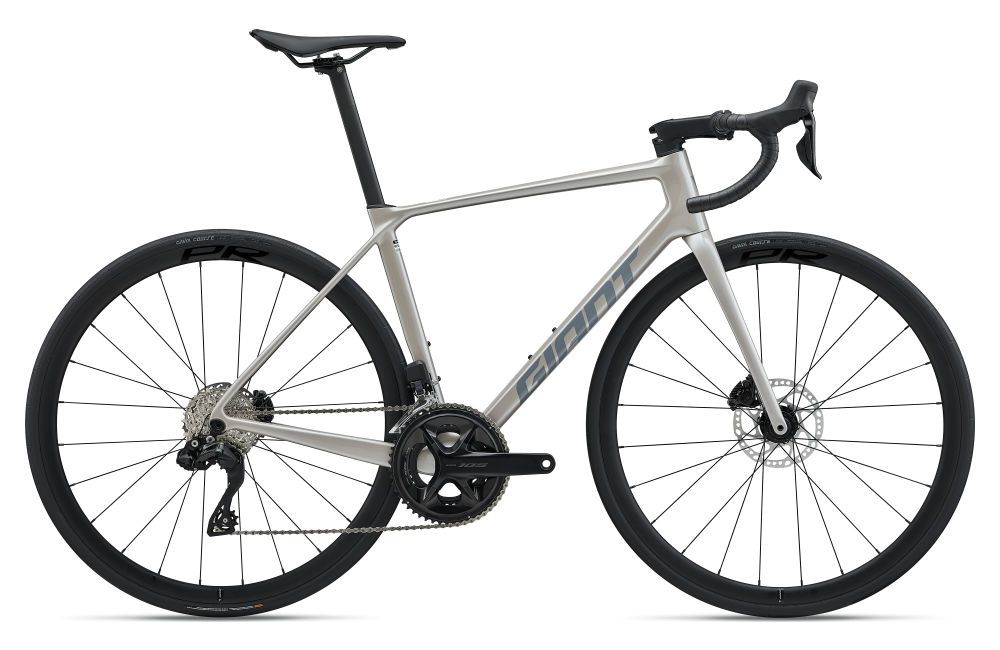

Giant TCR Advanced 1 - PC

Name: Giant TCR Advanced 1 - PC
Brand: Giant
SKU: 9096067106 - Base
Price: 2799.0 GBP
Availability: InStock

Home/Store/Bikes/Road Bikes

£2 799.00

Price incl. VAT (20%) £466.50

Colour

Please choose

Size

Please choose

In stock: 1 available

Brand: Giant

WINNING RACE BIKES HAVE JUST THE RIGHT BALANCE OF LIGHT WEIGHT, SUPERIOR STIFFNESS AND SMOOTH COMPLIANCE ON THE ROAD. TCR ADVANCED DELIVERS ON ALL THREE.

KEY PERFORMANCE FACTORS

Class-leading efficiency

A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tire pressures for increased grip and a reduced risk of punctures.

SPECIFICATIONS

Sizes

XS, S, M, M/L, L
Colours

Gloss Camel Silk
Frame

Advanced-Grade Composite, 12x142mm thru-axle, Disc
Fork

Advanced-Grade Composite, Full-Composite OverDrive Steerer, 12x100mm thru-axle, Disc
Handlebar

Giant Contact
Stem

Giant Contact Aerolight, -10 degree
Seatpost

Giant Variant, Composite Offset -5/+15mm
Saddle

Giant Approach 7mm Steel Rail, with UniClip / ParticleFlow technology
Pedals

PEDALS NOT SUPPLIED
Shifters

Shimano 105 Di2 HRD
Front Derailleur

Shimano 105 Di2
Rear Derailleur

Shimano 105 Di2
Brakes

Shimano 105 Di2 HRD
Brake Levers

Shimano 105 Di2 HRD
Cassette

Shimano 105 Di2, 11x34, 12-speed
Chain

KMC X12L-1
Crankset

Shimano 105 Di2, FC-R7100, 36/52
Bottom Bracket

Shimano, PressFit 71
Rims

Giant P-R1 Disc 12mm Thru-Axle
Hubs

Giant P-R1 Disc 12mm Thru-Axle
Spokes

Giant P-R1 Disc 12mm Thru-Axle
Tyres

Giant Gavia COURSE 0 Tubeless, 700x30C, 170 TPI, Folding
Extras

Tubeless Prepared
Max Tyre Clearance

700x33mm

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

		XS	ML	M	XL	L	S
A	SEAT TUBE LENGTH (mm)	425	500	470	560	530	445
B	SEAT TUBE ANGLE	74.5°	73.0°	73.5°	72.5°	73.0°	74.0°
C	TOP TUBE LENGTH (mm)	520	565	550	600	580	535
D	HEAD TUBE LENGTH (mm)	120	165	145	200	185	130
E	HEAD TUBE ANGLE	71.0°	73.0°	73.0°	73.0°	73.0°	72.3°
F	FORK RAKE (mm)	45	45	45	45	45	45
G	TRAIL (mm)	72.0	59.0	59.0	59.0	59.0	64.0
H	WHEELBASE (mm)	976	991	980	1020	1006	977
I	CHAIN STAY LENGTH (mm)	405	405	405	405	405	405
J	BOTTOM BRACKET DROP (mm)	72	67	69	67	67	69
K	STACK (mm)	517	562	545	596	581	528
L	REACH (mm)	376	393	388	412	402	383
M	STAND OVER HEIGHT (mm)	719	768	752	803	786	734
N	HANDLEBAR WIDTH (mm)	380	400	400	420	420	380
O	STEM LENGTH (mm)	80	110	100	120	110	90
P	CRANK LENGTH (mm)	165	170	170	172	172	165
Q	WHEEL SIZE	700C	700C	700C	700C	700C	700C
