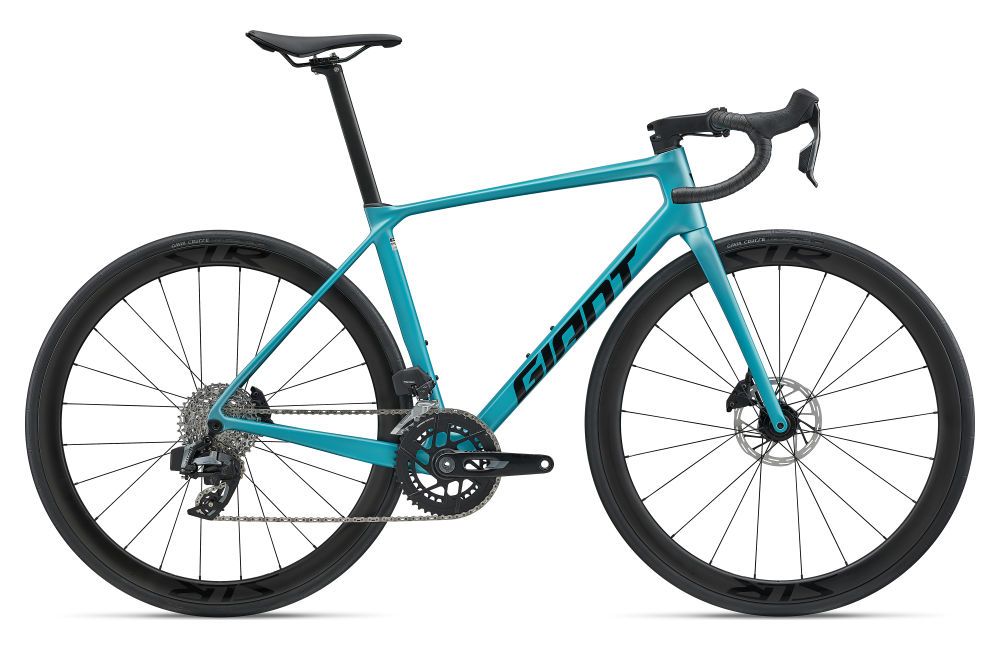

Giant TCR Advanced 0 -AXS

Name: Giant TCR Advanced 0 -AXS
Brand: Giant
SKU: 9096064105 - Base
Price: 3399.0 GBP
Availability: InStock

Home/Store/Clothing

£3 399.00

Price incl. VAT (20%) £566.50

Colour

Please choose

Size

Please choose

In stock: 1 available

Brand: Giant

WINNING RACE BIKES HAVE JUST THE RIGHT BALANCE OF LIGHT WEIGHT, SUPERIOR STIFFNESS AND SMOOTH COMPLIANCE ON THE ROAD. TCR ADVANCED DELIVERS ON ALL THREE.

KEY PERFORMANCE FACTORS

Class-leading efficiency

A high stiffness-to-weight ratio combined with strategically placed aero tube shaping results in faster climbing, explosive acceleration and unyielding pedaling stiffness for race-winning performance.

Advanced aerodynamics

This is where the TCR’s most quantifiable gains can be found compared to previous generation models. Every tube shape was analyzed, engineered and tested to create an overall structure with significantly lower drag at a wider range of yaw angles.

Total control

A composite fork delivers torsional stiffness for sharp handling and steering precision, while a Giant WheelSystem with tubeless technology allows you to run lower tire pressures for increased grip and a reduced risk of punctures.

SPECIFICATIONS

Sizes

S, M, M/L, L, XL
Colours

Satin Teal
Frame

Advanced-grade composite, 12x142mm thru-axle, disc
Fork

Advanced-grade composite, full-composite OverDrive steerer, 12x100mm thru-axle, disc
Handlebar

Giant Contact XS:38cm, S:38cm, M:40cm, M/L:40cm, L:42cm, XL:42cm
Stem

Giant Contact AeroLight XS:80mm, S:90mm, M:100mm, M/L:110mm, L:110mm, XL:120mm
Seatpost

Giant Variant, composite, -5/+15mm offset
Saddle

Giant Approach
Pedals

PEDALS NOT SUPPLIED
Shifters

SRAM Rival AXS E1
Front Derailleur

SRAM Rival AXS E1
Rear Derailleur

SRAM Rival AXS E1
Brakes

SRAM Rival E1 hydraulic, SRAM PaceLine rotors [F]160mm, [R]140mm
Brake Levers

SRAM Rival AXS
Cassette

SRAM Rival E1, 12-speed, 10x36
Chain

SRAM Rival E1
Crankset

SRAM Rival E1, 33/46 XS:165mm, S:165mm, M:170mm, M/L:170mm, L:172.5mm, XL:172.5mm
Bottom Bracket

SRAM DUB, press fit
Rims

Giant SLR 2 40 WheelSystem, [F]40mm, [R]40mm
Hubs

[F] Giant Low Friction Hub, CenterLock, 12mm thru-axle [R] Giant Low Friction Hub, 30T pawl driver, CenterLock, 12mm thru-axle
Spokes

Sapim
Tyres

Giant Gavia Course 0, tubeless, 700x30c, folding
Extras

tubeless prepared, 33mm max tyre size

Every effort has been made to ensure accuracy throughout this website. However, Giant reserves the right to change bike specifications, features, prices and colours without prior notice.

SIZING GUIDE AND GEOMETRY

Sizing to be used as a reference only. Please check with a local authorized dealer to determine the correct size.
Available sizes may vary from country to country.

XS

157 cm 169 cm
S

165 cm 175 cm
M

171 cm 181 cm
ML

177 cm 187 cm
L

183 cm 193 cm
XL

189 cm 199 cm

		XS	S	M	ML	L	XL
A	SEAT TUBE LENGTH (mm)	425	445	470	500	530	560
B	SEAT TUBE ANGLE	74.5°	74.0°	73.5°	73.0°	73.0°	72.5°
C	TOP TUBE LENGTH (mm)	520	535	550	565	580	600
D	HEAD TUBE LENGTH (mm)	120	130	145	165	185	200
E	HEAD TUBE ANGLE	71.0°	72.3°	73.0°	73.0°	73.0°	73.0°
F	FORK RAKE (mm)	45	45	45	45	45	45
G	TRAIL (mm)	72.1	64.0	59.2	59.2	59.2	59.2
H	WHEELBASE (mm)	976	977	980	991	1006	1020
I	CHAIN STAY LENGTH (mm)	405	405	405	405	405	405
J	BOTTOM BRACKET DROP (mm)	72	70	70	67	67	67
K	STACK (mm)	517	528	545	562	581	596
L	REACH (mm)	376	383	388	393	402	412
M	STAND OVER HEIGHT (mm)	719	734	752	768	786	803
N	HANDLEBAR WIDTH (mm)	380	380	400	400	420	420
O	STEM LENGTH (mm)	80	90	100	110	110	120
P	CRANK LENGTH (mm)	165	165	170	170	172	172
